The calorific value per unit length of single-phase constant power electric heating belt is constant, and the output power is not affected by the change of ambient temperature. The length of the electric heating belt is proportional to the power. It can be cut at will during installation, but a heating joint (at least 2.5m) must be reserved. The outer braided layer has the functions of heat transfer and heat dissipation, and can be used as the safe grounding of anti-static. Generally, it needs to be used with temperature control system.

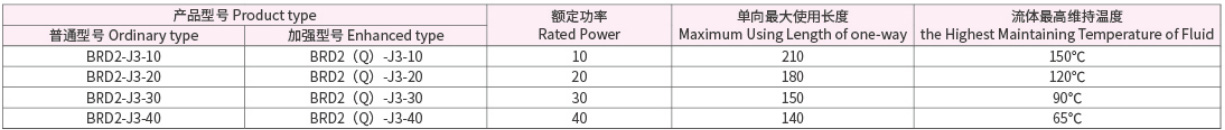

Product specifications and main technical parameters

Power 15W / m, 25W / m, 35W / m, 45W / M are non-standard products, customers need to order. If customers need special working voltage, such as 24 V, 36 V, 110 V, please contact our technical department.
Rated voltage: 220 V, normal insulation resistance: ≥ 50 m Ω, dielectric strength: 2000 VAC / 1 min, 50 Hz, insulating layer material: F46 fluoroplastic, maximum temperature resistance: 205 ℃, explosion proof sign: exe Ⅱ T4, protection grade: IP54
